Silver City's Sidewalk Solar System starts on Swan Street next to Fox Field. Go to Swan and 32nd and walk South on the sidewalk to the first power pole (50 yd line). You will see an 18 inch plaque of the Sun in the sidewalk. This is the start of your journey. Look above you and you will see a second "Sun" on the power pole. This scale model has the same scale (3 billion to 1) for both the distance and the size dimensions. As you walk south to encounter each planet plaque, look back at the "Sun". It will appear the same size, as if you were on the real Planet looking at the real Sun. Normal walking speed equals ten times the speed of light in this scale model. If you were on the 'Starship Enterprise' in 'Startrek', you would be traveling at Warp 2. This project was created by Bill Neely of NF/ Observatory, Ltd. NFO is an Educational Non-Profit Corporation, founded to further astronomical education and research. Gina Moore, a student at WNMU, did the layout and the first draft of the plaque design in her semester in Physical Science 485, taught by Neely. Michael Metcalf, an Art Professor at WNMU, made several artistic suggestions, and helped Neely cast the project in bronze in 'Sculpture 2'. Tom Turner, the San Man, cemented the plaques into the sidewalk. Funding came from the Phelps Dodge Corporation and "Project Astro" (a program of the Astronomical society of the Pacific, funded by NASA - pairing astronomers and teachers in the classroom). This guide was copied, with some editing, from Bill Arnett's solar system pages on the World Wide Web. There are links to the Arnett's original pages (which have lots of extra information) from our Web Site. Go to http://nfo.edu/solar to find this guide, pictures of the plaques, and a map of the project. Links: NFO (http://nfo.edu) Project Astro (http://nfo.edu/astro/) WNMU (http://www.wnmu.edu) Bill Arnett's Pages(http://seds.lpl.arizona.edu/billa/tnp/) You may want to print this guide to help learn more about our solar system as you walk along.
Scale = 3 billion to 1
|Planet||A.U.'s from Sun||Kilometers from Sun||Miles from Sun||Scaled distance in Meters||Scaled distance in Miles;||Scaled distance in Feet|
|Mercury||0.387||57.9 million||36.0 million||19.3||0.012||63.36|
|Venus||0.723||108 million||67.2 million||36||0.022||116.2|

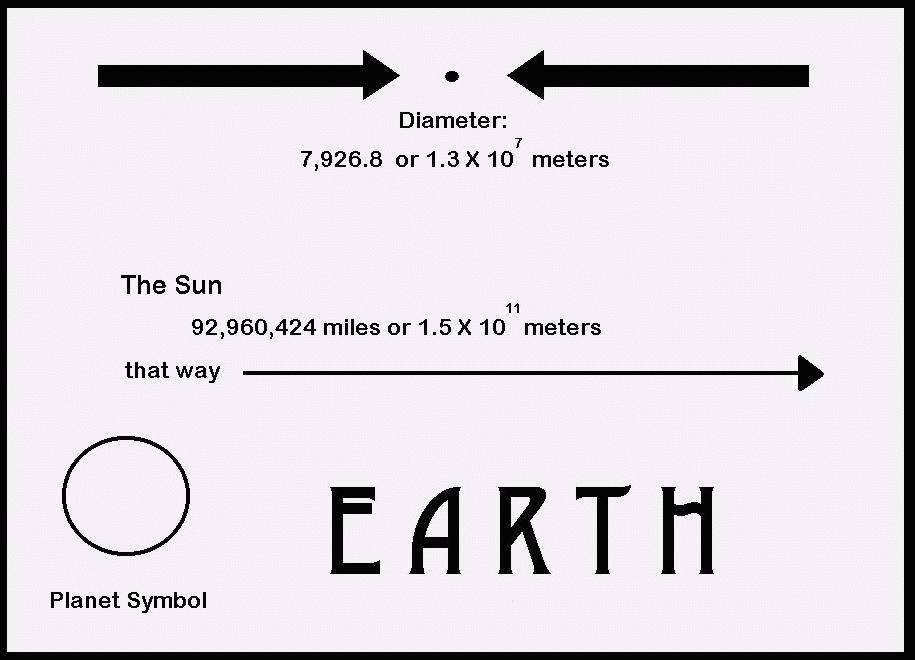

|Earth||1||150 million||93.0 million||50||0.031||163.7|

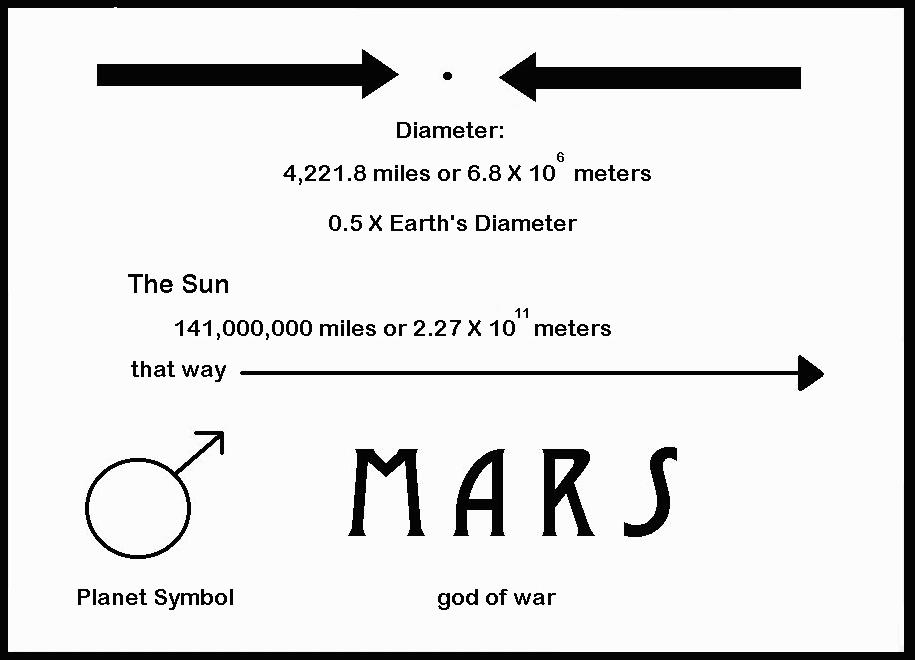

|Mars||1.52||227 million||141 million||75.7||0.047||248|
|Jupiter||5.2||778 million||483 million||259||0.161||850|
|Saturn||9.54||1.43 billion||887 million||477||0.296||1563|
|Uranus||19.2||2.87 billion||1.78 billion||957||0.595||3142|
|Neptune||30.1||4.50 billion||2.8 billion||1500||0.932||4921|

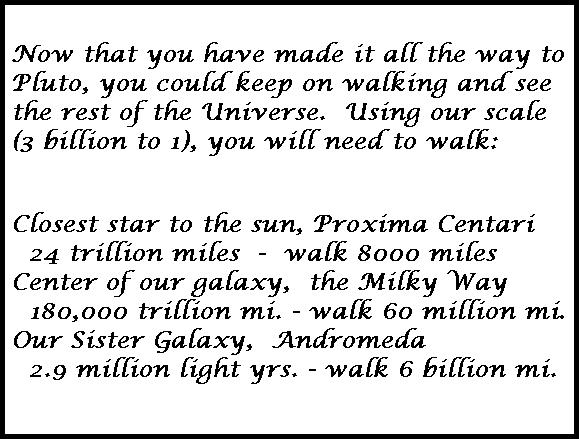

|Pluto||39.4||5.89 billion||3.66 billion||1963||1.220||6442|
Scale = 3 billion to 1
|Object||Diameter in Kilometers||Diameter in Miles||Scaled size in milimeters||Scaled size in inches|
SUN Sol The Sun is an ordinary G2 star, one of more than 100 billion stars in our galaxy. diameter: 1,390,000 km. mass: 1.989e30 kg temperature: 5800 K (surface) 15,600,000 K (core) The Sun is by far the largest object in the solar system. It contains more than 99.8% of the total mass of the Solar System (Jupiter contains most of the rest). The Sun is personified in many mythologies: the Greeks called it Helios and the Romans called it Sol. The Sun is, at present, about 75% hydrogen and 25% helium by mass (92.1% hydrogen and 7.8% helium by number of atoms); everything else ("metals") amounts to only 0.1%. This changes slowly over time as the Sun converts hydrogen to helium in its core. The outer layers of the Sun exhibit differential rotation: at the equator the surface rotates once every 25.4 days; near the poles it's as much as 36 days. This odd behavior is due to the fact that the Sun is not a solid body like the Earth. Similar effects are seen in the gas planets. Conditions at the Sun's core are extreme. The temperature is 15.6 million Kelvin and the pressure is 250 billion atmospheres. The core's gases are compressed to a density 150 times that of water. The Sun's energy output (3.86e33 ergs/second or 386 billion billion megawatts) is produced by nuclear fusion reactions. Each second about 700,000,000 tons of hydrogen are converted to about 695,000,000 tons of helium and 5,000,000 tons (=3.86e33 ergs) of energy in the form of gamma rays. As it travels out toward the surface, the energy is continuously absorbed and re-emitted at lower and lower temperatures so that by the time it reaches the surface, it is primarily visible light. For the last 20% of the way to the surface the energy is carried more by convection than by radiation. The surface of the Sun, called the photosphere, is at a temperature of about 5800 K. Sunspots are "cool" regions, only 3800 K (they look dark only by comparison with the surrounding regions). Sunspots can be very large, as much as 50,000 km in diameter. Sunspots are caused by complicated and not very well understood interactions with the Sun's magnetic field. A small region known as the chromosphere lies above the photosphere. The highly rarefied region above the chromosphere, called the corona, extends millions of kilometers into space but is visible only during eclipses (left). Temperatures in the corona are over 1,000,000 K. In addition to heat and light, the Sun also emits a low density stream of charged particles (mostly electrons and protons) known as the solar wind which propagates throughout the solar system at about 450 km/sec. The solar wind and the much higher energy particles ejected by solar flares can have dramatic effects on the Earth ranging from power line surges to radio interference to the beautiful aurora borealis. The solar wind has large effects on the tails of comets and even has measurable effects on the trajectories of spacecraft. Spectacular loops and prominences are often visible on the Sun's limb. The Sun is about 4.5 billion years old. Since its birth it has used up about half of the hydrogen in its core. It will continue to radiate "peacefully" for another 5 billion years or so (although its luminosity will approximately double in that time). But eventually it will run out of hydrogen fuel. It will then be forced into radical changes which, though commonplace by stellar standards, will result in the total destruction of the Earth (and probably the creation of a planetary nebula). There are nine planets and a large number of smaller objects orbiting the Sun. (Exactly which bodies should be classified as planets and which as "smaller objects" has been the source of some controversy, but in the end it is really only a matter of definition.) Mercury The Winged Messenger Mercury is the closest planet to the Sun and the eighth largest. Mercury is smaller in diameter than Ganymede and Titan but more massive. orbit: 57,910,000 km (0.38 AU) from Sun diameter: 4,880 km mass: 3.30e23 kg In Roman mythology Mercury is the god of commerce, travel and thievery, the Roman counterpart of the Greek god Hermes, the messenger of the Gods. The planet probably received this name because it moves so quickly across the sky. Mercury has been known since at least the time of the Sumerians (3rd millennium BC). It was given two names by the Greeks: Apollo for its apparition as a morning star and Hermes as an evening star. Greek astronomers knew, however, that the two names referred to the same body. Heraclitus even believed that Mercury and Venus orbit the Sun, not the Earth. Mercury has been visited by only one spacecraft, Mariner 10. It flew by three times in 1973 and 1974. Mercury's orbit is highly eccentric; at perihelion it is only 46 million km from the Sun but at aphelion it is 70 million. The perihelion of its orbit precesses around the Sun at a very slow rate. 19th century astronomers made very careful observations of Mercury's orbital parameters but could not adequately explain them using Newtonian mechanics. The tiny differences between the observed and predicted values were a minor but nagging problem for many decades. It was thought that another planet (sometimes called Vulcan) might exist in an orbit near Mercury's to account for the discrepancy. The real answer turned out to be much more dramatic: Einstein's General Theory of Relativity! Its correct prediction of the motions of Mercury was an important factor in the early acceptance of the theory. Temperature variations on Mercury are the most extreme in the solar system ranging from 90 K to 700 K. The temperature on Venus is slightly hotter but very stable. Mercury is in many ways similar to the Moon: its surface is heavily cratered and very old; it has no plate tectonics. On the other hand, Mercury is much denser than the Moon (5.43 gm/cm3 vs 3.34). Mercury is the second densest major body in the solar system, after Earth. Actually Earth's density is due in part to gravitational compression; if not for this, Mercury would be denser than Earth. This indicates that Mercury's dense iron core is relatively larger than Earth's, probably comprising the majority of the planet. Mercury therefore has only a relatively thin silicate mantle and crust. Mercury's interior is dominated by a large iron core whose radius is 1800 to 1900 km. The silicate outer shell (analogous to Earth's mantle and crust) is only 500 to 600 km thick. At least some of the core is probably molten. Mercury actually has a very thin atmosphere consisting of atoms blasted off its surface by the solar wind. Because Mercury is so hot, these atoms quickly escape into space. Thus in contrast to the Earth and Venus whose atmospheres are stable, Mercury's atmosphere is constantly being replenished. The surface of Mercury exhibits enormous escarpments, some up to hundreds of kilometers in length and as much as three kilometers high. Some cut thru the rings of craters and other features in such a way as to indicate that they were formed by compression. It is estimated that the surface area of Mercury shrank by about 0.1% (or a decrease of about 1 km in the planet's radius). In addition to the heavily cratered terrain, Mercury also has regions of relatively smooth plains. Some may be the result of ancient volcanic activity but some may be the result of the deposition of ejecta from cratering impacts. Amazingly, radar observations of Mercury's north pole (a region not mapped by Mariner 10) show evidence of water ice in the protected shadows of some craters. Mercury has no known satellites. Mercury is often visible with binoculars or even the naked eye, but it is always very near the Sun and difficult to see in the twilight sky. False Color Radar Map of Venus' Surface (beneath the clouds) Venus The Bringer of Peace Venus is the second planet from the Sun and the sixth largest. orbit: 108,200,000 km (0.72 AU) from Sun diameter: 12,103.6 km mass: 4.869e24 kg Venus (Greek: Aphrodite; Babylonian: Ishtar) is the goddess of love and beauty. The planet is so named probably because it is the brightest of the planets known to the ancients. (With a few exceptions, the surface features on Venus are named for female figures.) Venus has been known since prehistoric times. It is the brightest object in the sky except for the Sun and the Moon. Like Mercury, it was popularly thought to be two separate bodies: Eosphorus as the morning star and Hesperus as the evening star, but the Greek astronomers knew better. Since Venus is an inferior planet, it shows phases when viewed with a telescope from the perspective of Earth. Galileo's observation of this phenomenon was important evidence in favor of Copernicus's heliocentric theory of the solar system. The first spacecraft to visit Venus was Mariner 2 in 1962. It was subsequently visited by many others (more than 20 in all so far), including Pioneer Venus and the Soviet Venera 7 the first spacecraft to land on another planet, and Venera 9 which returned the first photographs of the surface (left). Most recently, the orbiting US spacecraft Magellan produced detailed maps of Venus' surface using radar. Venus is sometimes regarded as Earth's sister planet. In some ways they are very similar: -- Venus is only slightly smaller than Earth (95% of Earth's diameter, 80% of Earth's mass). -- Both have few craters indicating relatively young surfaces. -- Their densities and chemical compositions are similar. Because of these similarities, it was thought that below its dense clouds Venus might be very Earthlike and might even have life. But, unfortunately, more detailed study of Venus reveals that in many important ways it is radically different from Earth. The pressure of Venus' atmosphere at the surface is 90 atmospheres (about the same as the pressure at a depth of 1 km in Earth's oceans). It is composed mostly of carbon dioxide. There are several layers of clouds many kilometers thick composed of sulfuric acid. These clouds completely obscure our view surface. This dense atmosphere produces a run-away greenhouse effect that raises Venus' surface temperature by about 400 degrees to over 740 K (hot enough to melt lead). Venus' surface is actually hotter than Mercury's despite being nearly twice as far from the Sun. There are strong (350 kph) winds at the cloud tops but winds at the surface are very slow, no more than a few kilometers per hour. Venus probably once had large amounts of water like Earth but it all boiled away. Venus is now quite dry. Earth would have suffered the same fate had it been just a little closer to the Sun. We may learn a lot about Earth by learning why the basically similar Venus turned out so differently. Most of Venus' surface consists of gently rolling plains with little relief. Data from Magellan's imaging radar shows that much of the surface of Venus is covered by lava flows. There are several large shield volcanoes (similar to Hawaii or Olympus Mons) such as Sif Mons (right). Recently announced findings indicate that Venus is still volcanically active, but only in a few hot spots; for the most part it has been geologically rather quiet for the past few hundred million years. There are no small craters on Venus. It seems that small meteoroids burn up in Venus' dense atmosphere before reaching the surface. Craters on Venus seem to come in bunches indicating that large meteoroids that do reach the surface usually break up in the atmosphere. The oldest terrains on Venus seem to be about 800 million years old. Extensive volcanism at that time wiped out the earlier surface including any large craters from early in Venus' history. The interior of Venus is probably very similar to that of Earth: an iron core about 3000 km in radius, a molten rocky mantle comprising the majority of the planet. Venus is usually visible with the naked eye. Sometimes (inaccurately) refered to as the "morning star" or the "evening star", it is by far the brightest "star" in the sky. Earth Earth is the third planet from the Sun and the fifth largest: orbit: 149,600,000 km (1.00 AU) from Sun diameter: 12,756.3 km mass: 5.9736e24 kg Earth is the only planet whose English name does not derive from Greek/Roman mythology. The name derives from Old English and Germanic. There are, of course, hundreds of other names for the planet in other languages. In Roman Mythology, the goddess of the Earth was Tellus - the fertile soil (Greek: Gaia, terra mater - Mother Earth). It was not until the time of Copernicus (the sixteenth century) that it was understood that the Earth is just another planet. The Earth is divided into several layers which have distinct chemical and seismic properties (depths in km): 0- 40 Crust 40- 400 Upper mantle 400- 650 Transition region 650-2700 Lower mantle 2700-2890 D'' layer 2890-5150 Outer core 5150-6378 Inner core The core is probably composed mostly of iron (or nickel/iron) though it is possible that some lighter elements may be present, too. Temperatures at the center of the core may be as high as 7500 K, hotter than the surface of the Sun. The Earth is the densest major body in the solar system. The Earth's surface is very young. In the relatively short (by astronomical standards) period of 500,000,000 years or so erosion and tectonic processes destroy and recreate most of the Earth's surface and thereby eliminate almost all traces of earlier geologic surface history (such as impact craters). Thus the very early history of the Earth has mostly been erased. The Earth is 4.5 to 4.6 billion years old, but the oldest known rocks are about 4 billion years old and rocks older than 3 billion years are rare. The oldest fossils of living organisms are less than 3.9 billion years old. There is no record of the critical period when life was first getting started. 71 Percent of the Earth's surface is covered with water. Earth is the only planet on which water can exist in liquid form on the surface (though there may be liquid ethane or methane on Titan's surface and liquid water beneath the surface of Europa). Liquid water is, of course, essential for life as we know it. The heat capacity of the oceans is also very important in keeping the Earth's temperature relatively stable. Liquid water is also responsible for most of the erosion and weathering of the Earth's continents, a process unique in the solar system today (though it may have occurred on Mars in the past). The Earth's atmosphere is 77% nitrogen, 21% oxygen, with traces of argon, carbon dioxide and water. There was probably a very much larger amount of carbon dioxide in the Earth's atmosphere when the Earth was first formed, but it has since been almost all incorporated into carbonate rocks and to a lesser extent dissolved into the oceans and consumed by living plants. Plate tectonics and biological processes now maintain a continual flow of carbon dioxide from the atmosphere to these various "sinks" and back again. The tiny amount of carbon dioxide resident in the atmosphere at any time is extremely important to the maintenance of the Earth's surface temperature via the greenhouse effect. The greenhouse effect raises the average surface temperature about 35 degrees C above what it would otherwise be (from a frigid -21 C to a comfortable +14 C); without it the oceans would freeze and life as we know it would be impossible. The presence of free oxygen is quite remarkable from a chemical point of view. Oxygen is a very reactive gas and under "normal" circumstances would quickly combine with other elements. The oxygen in Earth's atmosphere is produced and maintained by biological processes. Without life there would be no free oxygen. The interaction of the Earth and the Moon slows the Earth's rotation by about 2 milliseconds per century. Current research indicates that about 900 million years ago there were 481 18-hour days in a year. Earth's Satellite Earth has only one natural satellite, the Moon. Mars The Bringer of War Mars is the fourth planet from the Sun and the seventh largest: orbit: 227,940,000 km (1.52 AU) from Sun diameter: 6,794 km mass: 6.4219e23 kg Mars (Greek: Ares) is the god of War. The planet probably got this name due to its red color; Mars is sometimes referred to as the Red Planet. (An interesting side note: the Roman god Mars was a god of agriculture before becoming associated with the Greek Ares; those in favor of colonizing and terra forming Mars may prefer this symbolism.) The name of the month March derives from Mars. Mars has been known since prehistoric times. It is still a favorite of science fiction writers as the most favorable place in the Solar System (other than Earth!) for human habitation. But the famous "canals" "seen" by Lowell and others were imaginary. The first spacecraft to visit Mars was Mariner 4 in 1965. Several others followed including the two Viking landers in 1976. Ending a long 20 year hiatus, Mars Pathfinder landed successfully on Mars on 1997 July 4. Though Mars is much smaller than Earth, its surface area is about the same as the land surface area of Earth. Except for Earth, Mars has the most highly varied and interesting terrain of any of the terrestrial planets, some of it quite spectacular: - Olympus Mons: the largest mountain in the Solar System rising 24 km (78,000 ft.) above the surrounding plain. Its base is more than 500 km in diameter and is rimmed by a cliff 6 km (20,000 ft) high (right). - Tharsis: a huge bulge on the Martian surface that is about 4000 km across and 10 km high. - Valles Marineris: a system of canyons 4000 km long and from 2 to 7 km deep (top of page); - Hellas Planitia: an impact crater in the southern hemisphere over 6 km deep and 2000 km in diameter. Much of the Martian surface is very old and cratered, but there are also much younger rift valleys, ridges, hills and plains. There is very clear evidence of erosion in many places on Mars including large floods and small river systems (right). At some time in the past there was clearly water on the surface There may have been large lakes or even oceans. But it seems that this occurred only briefly and very long ago; the age of the erosion channels is estimated at about nearly 4 billion years. Early in its history, Mars was much more like Earth. As with Earth almost all of its carbon dioxide was used up to form carbonate rocks. But lacking the Earth's plate tectonics, Mars is unable to recycle any of this carbon dioxide back into its atmosphere and so cannot sustain a significant greenhouse effect. The surface of Mars is therefore much colder than the Earth would be at that distance from the Sun. Mars has a very thin atmosphere composed mostly of the tiny amount of remaining carbon dioxide (95.3%) plus nitrogen (2.7%), argon (1.6%) and traces of oxygen (0.15%) and water (0.03%). It is thick enough to support very strong winds and vast dust storms that on occasion engulf the entire planet for months. Mars' thin atmosphere produces a greenhouse effect but it is only enough to raise the surface temperature by 5 degrees (K); much less than what we see on Venus and Earth. Mars has permanent ice caps at both poles composed mostly of solid carbon dioxide ("dry ice"). Recent observations with the Hubble Space Telescope have revealed that the conditions during the Viking missions may not have been typical. Mars' atmosphere now seems to be both colder and dryer than measured by the Viking landers. The Viking landers performed experiments to determine the existence of life on Mars. The results were somewhat ambiguous but most scientists now believe that they show no evidence for life on Mars (there is still some controversy, however). Optimists point out that only two tiny samples were measured and not from the most favorable locations. More experiments will be done by future missions to Mars. On 1996 Aug. 6, David McKay et al announced the first identification of organic compounds in a Martian meteorite. The authors further suggest that these compounds, in conjunction with a number of other mineralogical features observed in the rock, may be evidence of ancient Martian microorganisms. Exciting as this is, it is important to note while this evidence is strong it by no means establishes the fact of extraterrestrial life. There have also bee several contradictory studies published since the McKay paper. Remember, "extraordinary claims require extraordinary evidence." Much work remains to be done before we can be confident of this most extraordinary claim. When it is in the nighttime sky, Mars is easily visible with the naked eye. Its apparent brightness varies greatly according to its relative position to the Earth. Mars' Satellites Mars has two tiny satellites which orbit very close to the surface, Deimos and Phobos. Jupiter The Bringer of Jollity Jupiter is the fifth planet from the Sun and by far the largest. Jupiter is more than twice as massive as all the other planets combined (318 times Earth). orbit: 778,330,000 km (5.20 AU) from Sun diameter: 142,984 km (equatorial) mass: 1.900e27 kg Jupiter (a.k.a. Jove; Greek Zeus) was the King of the Gods, the ruler of Olympus and the patron of the Roman state. Zeus was the son of Cronus (Saturn). Jupiter is the fourth brightest object in the sky (after the Sun, the Moon and Venus; at some times Mars is also brighter). It has been known since prehistoric times. Galileo's discovery, in 1610, of Jupiter's four large moons Io, Europa, Ganymede and Callisto (now known as the Galilean moons) was the first discovery of a center of motion not apparently centered on the Earth. It was a major point in favor of Copernicus's heliocentric theory of the motions of the planets; Galileo's outspoken support of the Copernican theory got him arrested by the Inquisition. He was forced to recant his beliefs and was imprisoned for the rest of his life. Jupiter was first visited by Pioneer 10 in 1973 and later by Pioneer 11, Voyager 1, Voyager 2 and Ulysses. The spacecraft Galileo is currently in orbit around Jupiter and will be sending back data for at least the next two years. The gas planets do not have solid surfaces, their gaseous material simply gets denser with depth (the radii and diameters quoted for the planets are for levels corresponding to a pressure of 1 atmosphere). What we see when looking at these planets is the tops of clouds high in their atmospheres (slightly above the 1 atmosphere level). Jupiter is about 90% hydrogen and 10% helium (by numbers of atoms, 75/25% by mass) with traces of methane, water, ammonia and "rock". This is very close to the composition of the primordial Solar Nebula from which the entire solar system was formed. Saturn has a similar composition, but Uranus and Neptune have much less hydrogen and helium. Our knowledge of the interior of Jupiter (and the other gas planets) is highly indirect and likely to remain so for some time. (The data from Galileo's atmospheric probe goes down only about 150 km below the cloud tops.) Jupiter probably has a core of rocky material amounting to something like 10 to 15 Earth-masses. Above the core lies the main bulk of the planet in the form of liquid metallic hydrogen. This exotic form of the most common of elements is possible only at pressures exceeding 4 million bars, as is the case in the interior of Jupiter (and Saturn). Liquid metallic hydrogen consists of ionized protons and electrons (like the interior of the Sun but at a far lower temperature). At the temperature and pressure of Jupiter's interior hydrogen is a liquid, not a gas. It is an electrical conductor and the source of Jupiter's magnetic field. This layer probably also contains some helium and traces of various "ices". The outermost layer is composed primarily of ordinary molecular hydrogen and helium which is liquid in the interior and gaseous further out. The atmosphere we see is just the very top of this deep layer. Water, carbon dioxide, methane and other simple molecules are also present in tiny amounts. Jupiter and the other gas planets have high velocity winds which are confined in wide bands of latitude. The winds blow in opposite directions in adjacent bands. The vivid colors seen in Jupiter's clouds are probably the result of subtle chemical reactions of the trace elements in Jupiter's atmosphere, perhaps involving sulfur whose compounds take on a wide variety of colors, but the details are unknown. The Great Red Spot has been seen by Earthly observers for more than 300 years. The GRS is an oval about 12,000 by 25,000 km, big enough to hold two Earths. Similar structures have been seen on Saturn and Neptune. It is not known how such structures can persist for so long. Jupiter radiates more energy into space than it receives from the Sun. The interior of Jupiter is hot: the core is probably about 20,000 K. The heat is generated by the slow gravitational compression of the planet. (Jupiter does NOT produce energy by nuclear fusion as in the Sun. Jupiter is just about as large in diameter as a gas planet can be. If more material were to be added, it would be compressed by gravity such that the overall radius would increase only slightly. A star can be larger only because of its internal (nuclear) heat source. (But Jupiter would have to be at least 80 times more massive to become a star.) When it is in the nighttime sky, Jupiter is often the brightest "star" in the sky (it is second only to Venus, which is seldom visible in a dark sky). The four Galilean moons are easily visible with binoculars; a few bands and the Great Red Spot can be seen with a small astronomical telescope. Jupiter has 16 known satellites, the four large Galilean moons and 12 small ones. Saturn The Bringer of Old Age Saturn is the sixth planet from the Sun and the second largest: orbit: 1,429,400,000 km (9.54 AU) from Sun diameter: 120,536 km (equatorial) mass: 5.68e26 kg In Roman mythology, Saturn is the god of agriculture. The associated Greek god, Cronus, was the son of Uranus and Gaia and the father of Zeus (Jupiter). Saturn is the root of the English word "Saturday". Saturn has been known since prehistoric times. Galileo was the first to observe it with a telescope in 1610; he noted its odd appearance but was confused by it. Early observations of Saturn were complicated by the fact that the Earth passes through the plane of Saturn's rings every few years as Saturn moves in its orbit. A low resolution image of Saturn therefore changes drastically. Saturn was first visited by Pioneer 11 in 1979 and later by Voyager 1 and Voyager 2. Cassini, now on its way, will arrive in 2004. Saturn is the least dense of the planets; its specific gravity (0.7) is less than that of water. Like Jupiter, Saturn is about 75% hydrogen and 25% helium with traces of water, methane, ammonia and "rock", similar to the composition of the primordial Solar Nebula from which the solar system was formed. Saturn's interior is hot (12000 K at the core) and Saturn radiates more energy into space than it receives from the Sun. Two prominent rings (A and B) and one faint ring (C) can be seen from the Earth. The gap between the A and B rings is known as the Cassini division. Though they look continuous from the Earth, the rings are actually composed of innumerable small particles each in an independent orbit. They range in size from a centimeter or so to several meters. A few kilometer-sized objects are also likely. The ring particles seem to be composed primarily of water ice, but they may also include rocky particles with icy coatings. The origin of the rings of Saturn (and the other jovian planets) is unknown. Though they may have had rings since their formation, the ring systems are not stable and must be regenerated by ongoing processes,probably the breakup of larger satellites. When it is in the nighttime sky, Saturn is easily visible to the naked eye. Though it is not nearly as bright as Jupiter, it is easy to identify as a planet because it doesn't "twinkle" like the stars do. The rings and the larger satellites are visible with a small astronomical telescope. Saturn has 18 named satellites, more than any other planet. There may very well also be several small ones yet to be discovered. Uranus The Magician Uranus is the seventh planet from the Sun and the third largest (by diameter). Uranus is larger in diameter but smaller in mass than Neptune. orbit: 2,870,990,000 km (19.218 AU) from Sun diameter: 51,118 km (equatorial) mass: 8.683e25 kg Careful pronunciation may be necessary to avoid embarrassment; say "YOOR a nus" , not "your anus" or "urine us". Uranus is the ancient Greek deity of the Heavens, the earliest supreme god. Uranus was the son and mate of Gaia the father of Cronus (Saturn) and of the Cyclopes and Titans (predecessors of the Olympian gods). Uranus, the first planet discovered in modern times, was discovered by William Herschel while systematically searching the sky with his telescope on March 13, 1781. It had actually been seen many times before but ignored as simply another star (the earliest recorded sighting was in 1690 when John Flamsteed cataloged it as 34 Tauri). Herschel named it "the Georgium Sidus" (the Georgian Planet) in honor of his patron, the infamous (to Americans) King George III of England; others called it "Herschel". The name "Uranus" was first proposed by Bode in conformity with the other planetary names from classical mythology but didn't come into common use until 1850. Uranus has been visited by only one spacecraft, Voyager 2 on Jan 24 1986. Most of the planets spin on an axis nearly perpendicular to the plane of the ecliptic but Uranus' axis is almost parallel to the ecliptic. At the time of Voyager 2's passage, Uranus' south pole was pointed almost directly at the Sun. This results in the odd fact that Uranus' polar regions receive more energy input from the Sun than do its equatorial regions. Uranus is nevertheless hotter at its equator than at its poles. The mechanism underlying this is unknown. Actually, there's an ongoing battle over which of Uranus' poles is its north pole! Either its axial inclination is a bit over 90 degrees and its rotation is direct, or it's a bit less than 90 degrees and the rotation is retrograde. The problem is that you need to draw a dividing line *somewhere*, because in a case like Venus there is little dispute that the rotation is indeed retrograde (not a direct rotation with an inclination of nearly 180). Uranus is composed primarily of rock and various ices, with only about 15% hydrogen and a little helium (in contrast to Jupiter and Saturn which are mostly hydrogen). Uranus (and Neptune) are in many ways similar to the cores of Jupiter and Saturn minus the massive liquid metallic hydrogen envelope. It appears that Uranus does not have a rocky core like Jupiter and Saturn but rather that its material is more or less uniformly distributed. Uranus' atmosphere is about 83% hydrogen, 15% helium and 2% methane. Uranus' blue color is the result of absorption of red light by methane in the upper atmosphere. There may be colored bands like Jupiter's but they are hidden from view by the overlaying methane layer. Like the other gas planets, Uranus has rings. Like Jupiter's, they are very dark but like Saturn's composed of fairly large particles ranging up to 10 meters in diameter in addition to fine dust. There are 11 known rings, all very faint; the brightest is known as the Epsilon ring. The Uranian rings were the first after Saturn's to be discovered. This was of considerable importance since we now know that rings are a common feature of planets, not a peculiarity of Saturn alone. Voyager 2 discovered 10 small moons in addition to the 5 large ones already known. It is likely that there are several more tiny satellites within the rings. Uranus is sometimes just barely visible with the naked eye on a very clear night; it is fairly easy to spot with binoculars (if you know exactly where to look). A small astronomical telescope will show a small disk. Uranus has 15 named moons plus 2 recently discovered ones which as yet have not been given names. Neptune The Mystic Neptune is the eighth planet from the Sun and the fourth largest (by diameter). Neptune is smaller in diameter but larger in mass than Uranus. orbit: 4,504,000,000 km (30.06 AU) from Sun diameter: 49,532 km (equatorial) mass: 1.0247e26 kg In Roman mythology Neptune (Greek: Poseidon) was the god of the Sea. After the discovery of Uranus, it was noticed that its orbit was not as it should be in accordance with Newton's laws. It was therefore predicted that another more distant planet must be perturbing Uranus' orbit. Neptune was first observed by Galle and d'Arrest on 1846 Sept 23 very near to the locations independently predicted by Adams and Le Verrier from calculations based on the observed positions of Jupiter, Saturn and Uranus. An international dispute arose between the English and French (though not, apparently between Adams and Le Verrier personally) over priority and the right to name the new planet; they are now jointly credited with Neptune's discovery. Subsequent observations have shown that the orbits calculated by Adams and Le Verrier diverge from Neptune's actual orbit fairly quickly. Had the search for the planet taken place a few years earlier or later it would not have been found anywhere near the predicted location. Neptune has been visited by only one spacecraft, Voyager 2 on Aug. 25 1989. Almost everything we know about Neptune comes from this encounter. Because Pluto's orbit is so eccentric, it sometimes crosses the orbit of Neptune. Since 1979 Neptune has actually been the most distant planet from the Sun; Pluto will again be the most distant in 1999. Neptune's composition is probably similar to Uranus': various "ices" and rock with about 15% hydrogen and a little helium. Like Uranus, but unlike Jupiter and Saturn, it may not have a distinct internal layering but rather to be more or less uniform in composition. But there is most likely a small core (about the mass of the Earth) of rocky material. Its atmosphere is mostly hydrogen and helium with a small amount of methane. Neptune's blue color is the result of absorption of red light by methane in the atmosphere. Like a typical gas planet, Neptune has rapid winds confined to bands of latitude and large storms or vortices. Neptune's winds are the fastest in the solar system, reaching 2000 km/hour. Like Jupiter and Saturn, Neptune has an internal heat source -- it radiates more than twice as much energy as it receives from the Sun. At the time of the Voyager encounter, Neptune's most prominent feature was the Great Dark Spot in the southern hemisphere. It was about half the size as Jupiter's Great Red Spot (about the same diameter as Earth). Neptune also has rings. Earth-based observations showed only faint arcs instead of complete rings, but Voyager 2's images showed them to be complete rings with bright clumps. One of the rings appears to have a curious twisted structure. Like Uranus and Jupiter, Neptune's rings are very dark but their composition is unknown. Neptune's rings have been given names: the outermost is Adams (which contains three prominent arcs now named Liberty, Equality and Fraternity), next is an unnamed ring coorbital with Galatea, then Leverrier (whose outer extensions are called Lassell and Arago), and finally the faint but broad Galle. Neptune can be seen with binoculars (if you know exactly where to look) but a large telescope is needed to see anything other than a tiny disk. Neptune has 8 known moons; 7 small ones and Triton. Pluto Pluto is the farthest planet from the Sun (usually) and by far the smallest. Pluto is smaller than seven of the solar system's moons (the Moon, Io, Europa, Ganymede, Callisto, Titan and Triton). orbit: 5,913,520,000 km (39.5 AU) from the Sun (average) diameter: 2274 km mass: 1.27e22 kg In Roman mythology, Pluto (Greek: Hades) is the god of the underworld. The planet received this name (after many other suggestions) perhaps because it's so far from the Sun that it is in perpetual darkness and perhaps because "PL" are the initials of Percival Lowell. Pluto was discovered in 1930 by a fortunate accident. Calculations which later turned out to be in error had predicted a planet beyond Neptune, based on the motions of Uranus and Neptune. Not knowing of the error, Clyde W. Tombaugh at Lowell Observatory in Arizona did a very careful sky survey which turned up Pluto anyway. After the discovery of Pluto, it was quickly determined that Pluto was too small to account for the discrepancies in the orbits of the other planets. The search for Planet X continued but nothing was found. Nor is it likely that it ever will be: the discrepancies vanish if the mass of Neptune determined from the Voyager 2 encounter with Neptune is used. There is no tenth planet. Pluto is the only planet that has not been visited by a spacecraft. Even the Hubble Space Telescope can resolve only the largest features on its surface. Fortunately, Pluto has a satellite, Charon. By good fortune, Charon was discovered (in 1978) just before its orbital plane moved edge-on toward the inner solar system. It was therefore possible to observe many transits of Pluto over Charon and vice versa. By carefully calculating which portions of which body would be covered at what times, and watching brightness curves, astronomers were able to construct a rough map of light and dark areas on both bodies. Pluto's radius is not well known. JPL's value of 1137 is given with an error of +/-8, almost one percent. Though the sum of the masses of Pluto and Charon is known pretty well -- they're so small and far away that even HST has difficulty resolving them. The ratio of their masses is probably somewhere between 0.084 and 0.157; more observations are underway but we won't get really accurate data until a spacecraft is sent. There are some who think Pluto would be better classified as a large asteroid or comet rather than as a planet. Some consider it to be the largest of the Kuiper Belt objects. There is considerable merit to the later position, but historically Pluto has been classified as a planet and it is likely to remain so. Pluto's orbit is highly eccentric. At times it is closer to the Sun than Neptune (it has been so since January 1979 and will continue until February 1999). Pluto rotates in the opposite direction from most of the other planets. Like Uranus, the plane of Pluto's equator is at almost right angles to the plane of its orbit. The surface temperature on Pluto is not well known but is probably between 35 and 45 Kelvins (-228 to -238 C). Pluto's composition is unknown, but its density (about 2 gm/cm3) indicates that it is probably a mixture of 70% rock and 30% water ice much like Triton. Little is known about Pluto's atmosphere, but it probably consists primarily of nitrogen with some carbon monoxide and methane. The Pluto Express mission planners want to arrive at Pluto while the atmosphere is unfrozen. Pluto can be seen with an amateur telescope but it is not easy. Charon is named for the mythological figure who ferried the dead across the River Styx into Hades (the underworld). Charon was discovered in 1978 by Jim Christy. Prior to that it was thought that Pluto was much larger since the images of Charon and Pluto were blurred together. It has been proposed that Charon was formed by a giant impact similar to the one that formed Earth's Moon.
We would like to thank Phelps Dodge and Project Astro for providing the funding for this project. The San Man provided the labor to place the plaques in the sidewalk. Texas NM Power Company put the sun model up on their power pole and adjusted the lighting. Michael Metcalf gave countless artistic suggestions and technical help during the casting process. I took his sculpture class at WNMU for two semesters. Silver Welding also lent us equipment. Regina Moore did an excellent job of the layout as part of her Physical Science 485 course at WNMU. She also did a great job on much of the NFO Web Site. Regina took the proposal to the Town of Silver City. I would like to also thank the original supporters of the proposal: Dr. Elna Stowe, Superintendent, Silver Schools, Dr. Harrell Holder, Superintendent, Cobre schools, Tom Schnalzer, Principal, Jose Barrios Elementary, Alan Ramirez, Principal, 6th St. Elementary, Travis Columbus, Principal, Harrison Schmitt Elementary, Tom Sweitzer, Principal, La Plata Middle School, Dr. William Soules, Principal, Snell Middle School, John Lathrop, Principal, G.W. Stout Elementary.
A. W. Neely NFO
